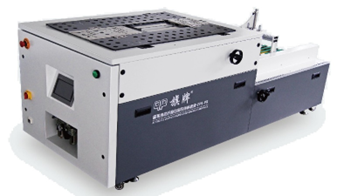

Features & Advantages:
- Small Space: Small space, simple operation standard folding effects.
- Two Options: Pack with bag or stack.
- Data Acquisition: With the function of data acquisition.
- Clean and Effective: Compact convenient and muti – function design makes next packing process clean and effective.
- Size After Folding: 18cm – 30cm
- Application: Polo Widely using for folding, stacking and packing of T shirt, polo shirt, underwear, thermal underwear, thin coat, etc.
- Folding Mode: Fold in half and even more
- Packing Mode: Semi – automatic, stacking without bag
- Packing Speed: 300 -500 pcs/H
- Control Panel: Button/Touch screen
- Voltage: 220V/50HZ
- Power: 0.1KW
- Air Pressure: 0.5Mpa
Widely using for folding, stacking and packing of T shirt, polo shirt, underwear, thermal underwear, thin coat, etc.

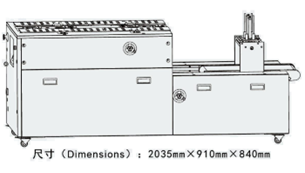

AUTOMATIC CLOTHES FOLDING & PACKING MACHINE – FPS -FA
Model No: FPS-FA
Technical Parameters
Features & Advantages:
- Small Space: Small size can realize folding, packing and sealing automatically.
- Adjustable Folding size: Both width and length of folding are
- Packing PCS adjustable: Both single -pack and multi – pack are available.
- Touch screen: Set and display parameters by touch screen; monitor output timely.
- High Standard folding effect: Ensure the collar at the bottom of bag and avoid loose hem.
- Size After Folding: 20-3028-40cm (WL)
- Application: T shirt, polo shirt, underwear, thermal underwear, trousers, thin coat, trousers, sports suit, etc.
- Operation Mode: Automatically Folding & Packing
- Packing Speed: 460pcs/H-500pcs/H
- Voltage: 220V/50HZ
- Power: 0.7KW
- Air Pressure: 0.6Mpa

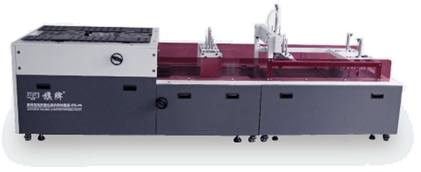

AUTOMATIC CLOTHES FOLDING & PACKING MACHINE -FPS-PR
Model No: FPS-PR
Technical Parameters
Features & Advantages:
- Small Space: Small size can realize folding and packing automatically.
- Adjustable Folding Size: Both width and length of folding are adjustable.
- Automatic Packing: Both single -pack and multi-pack are available.
- Touch Screen: Set and display parameters by touch screen, monitor output timely.
- High Standard Folding effect: Ensure the collar at the bottom of bag and avoid loose hem.
- Size After Folding: 20-3028-40cm (WL)
- Application: T shirt, polo shirt, underwear, thermal underwear, trousers, thin coat, trousers, sports suit, etc.
- Operation Mode: Automatically Folding & Packing
- Packing Speed: 460pcs/H-500pcs/H
- Voltage: 220V/50HZ
- Power: 0.7KW
- Air Pressure: 0.6Mpa
AUTOMATIC SHIRT FOLDING MACHINE -FPS-S
Model No: FPS-S
Technical Parameters
Features & Advantages:
- Neat & Efficient: Simple Operation, standard folding effects, work efficiently and neatly.
- Touch Screen: Display and adjust parameters by touching screen.
- Data Collection: Automatically count the output.
- Solid Effect: Folding dress shirt in a solid way.
- Size After Folding: 21-2232-34cm(WL)
- Application: Long sleeve/short sleeve shirt, casual shirt and dress shirt
- Auxiliary Folding: Add paper board back or put cuff front manually
- Packing Speed: 260pcs/H
- Voltage: 220V/50HZ
- Power: 0.1KW
- Air Pressure: 0.5Mpa

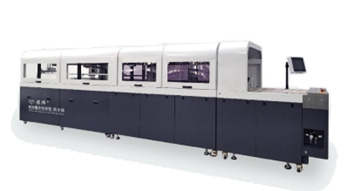

AUTOMATIC CLOTHES FOLDING & PACKING MACHINE-PRODUCTION LINE
MODEL NO: FP-L-1
Technical Parameters
Features & Advantages:
- Automatic Folding: Fast speed, less step, easy operation.
- Touch Screen: Adjust the specification fast by touching screen.
- Segmentation Structure: Segmentation design can match or be combined freely according to different requirement.
- Strong Compatibility: Easy to assemble any additional automatic and intelligent line.
- Data Acquisition: Real-time data acquisition conveys to existing systems.
- Width of Plastic Bag: 25cm-50cm
- Size After Folding: 20cm-40cm
- Application: Widely using for folding, stacking and packing of T shirt, polo shirt, underwear, thermal underwear, trousers and thin coat, etc.
- Operation Mode: Production Line
- Packing Speed: 400-600pcs/H
- Voltage: 220V/50HZ
- Power: 0.7KW
- Air Pressure: 0.6Mpa
- Machine Size: 4150x1200x1420mm
